PP Fiber Woven Tape T1100-Pipeline Anti Corrosion Tape | Viscoelastic Wrap

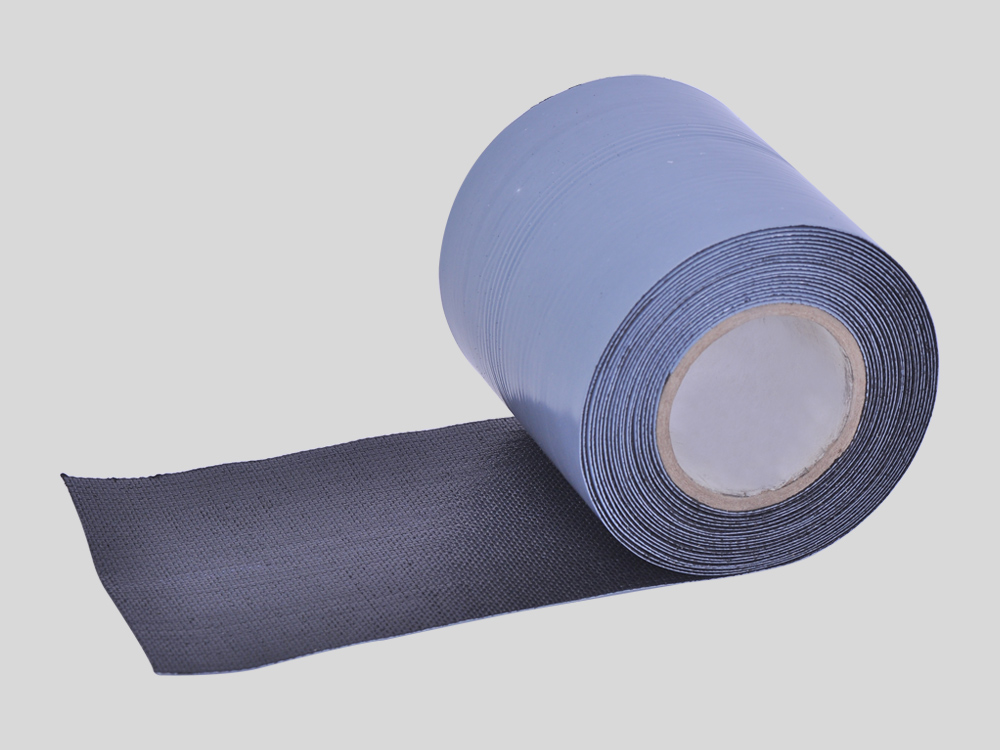

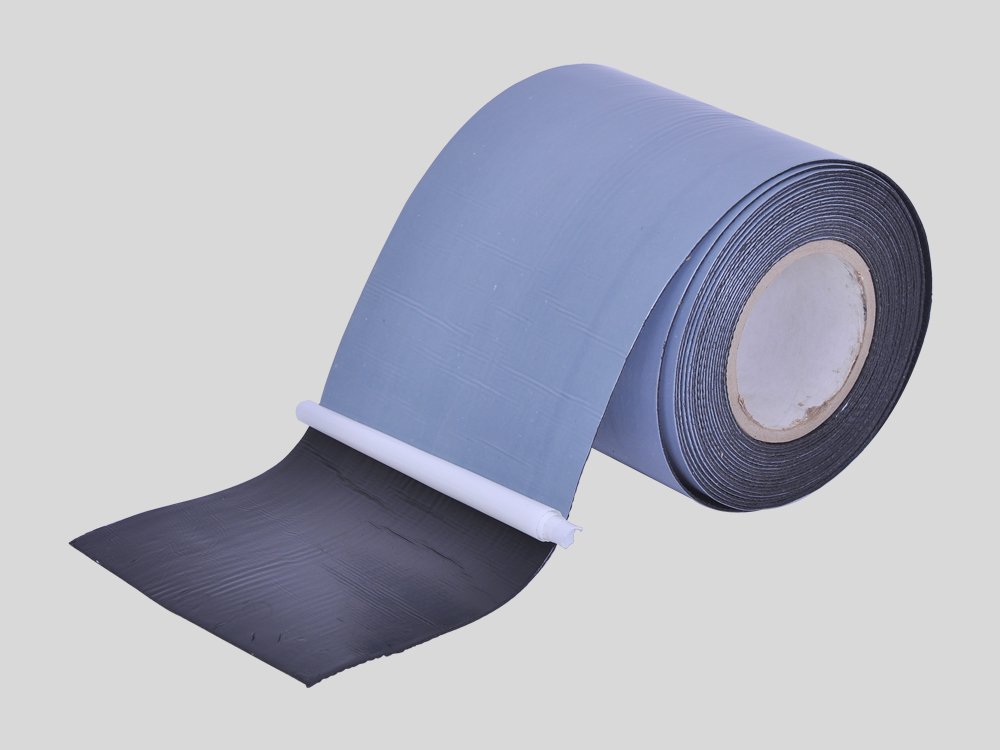

PP fiber woven tape T1100 is a two layer cold applied tape, consisting of a polypropylene geotextile backing laminated to rubberized bitumen adhesive with a release film positioned on the exposed face of the bitumen to enable proper unwinding of the roll.

T1100 can be used for corrosion prevention of buried pipeline steel. Also, it is usually used as an outerwrap with visco-elastic anticorrosion tape T900 for mechanical protection.

• Cold applied,easily and fast,without extra heat.

• Resistance to the cathodic disbondment.

• Long term corrosion protection.

• Compatible with common pipe coatings.

• Application by hand or machine.

Physical Properties	Test Method	Typical Value
Physical Properties	Test Method	English	Metric
Backing color	-	Black	Black
Tensile strength	ASTM D 1000	51 lbs/in	90 N/cm
Peel adhesion to primed steel pipe	ASTM D 1000	347oz/in	38N/cm
Cathodic Disbondment	ASTM G 8	0.252 in radius	6.4mm
Dielectric Strength	ASTM D 149	38 KV	38 KV
Volume Resistivity	ASTM D 257	2.5×1012 ohm.cm	2.5×1012 ohm.cm
Water Absorptivity	ASTM D 570	0.05%	0.05%
WaterVaporTransmissioinRate 24h	ASTM F 1249	0. 083 g/100sq in/24h	0.13 g/ m2/24h
Application Temperature	-	-29ºF to 185 ºF	-34ºC to +85 ºC
Max Service Temperature	-	185ºF	+85 ºC
